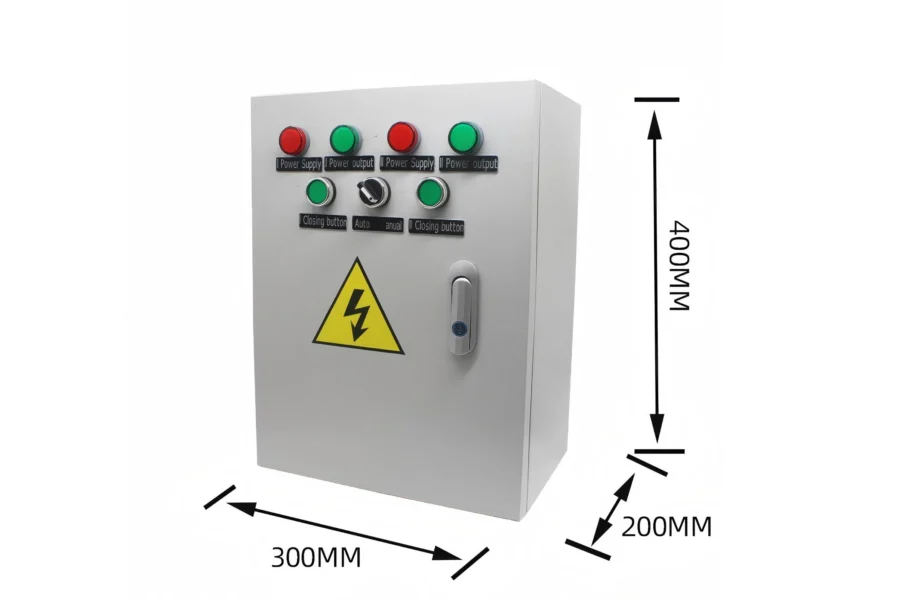

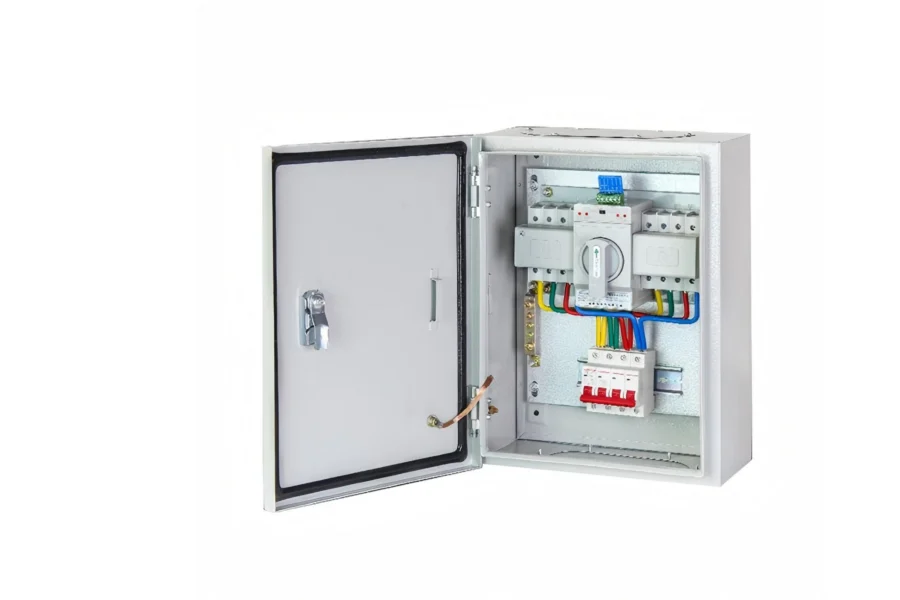

Automatic Transfer Switch Cabinet
Core Summary
ATS is an electrical device that automatically switches a power load between two sources. Typically, it’s used in settings where a backup power source, such as a generator or battery, is available.If the primary power source (like the grid) fails, the ATS will automatically switch to the secondary power source to ensure continuous operation.
Matching Information
Low-voltage automatic transfer switch assemblies provide a reliable means of transferring essential load connections between primary and alternate sources of electrical power. Data centers, hospitals, factories and a wide range of other facility types that require continuous or near-continuous uptime typically utilize an emergency (alternate) power source such as a generator or a backup utility feed when their normal (primary) power source becomes unavailable.
Product Feature
● Robust Construction: The cabinet is made of high-quality steel with a powder-coated finish, ensuring high resistance to corrosion and mechanical damage.
● Compact Design: The space-efficient design allows for easy integration into different environments while providing ample room for wiring and components.
● Modular Layout: The modular design facilitates easy assembly, maintenance, and scalability to meet varying power distribution needs.
● Advanced Ventilation: Equipped with a sophisticated ventilation system to prevent overheating and ensure optimal performance of internal components.
Operating Conditions
● Temperature Range: Suitable for environments with temperatures ranging from -25°C to +40°C.
● Humidity Conditions: Relative humidity should not exceed 90% at +25°C, making it suitable for dry or moderately humid environments.
● Altitude: Applicable for areas at altitudes not exceeding 2000 meters.
● Protection Level: With an IP30 protection level, it is suitable for environments without excessive dust and moisture.
● Installation Location: Designed for indoor installation, avoiding direct exposure to sunlight, rain, and corrosive gases.
Technical Specifications
- Content
- Value
- Rated voltage
- 380V
- Rated operating voltage
- 380V
- Rated frequency
- 50(60)Hz
- Rated insulation voltage
- 660V
- Main bus rated current
- 400V
- Rated current--short-time withstand
- 4.5KA
- Rated current--peak withstand
- 6.75KA
- Protection degree
- IP30
